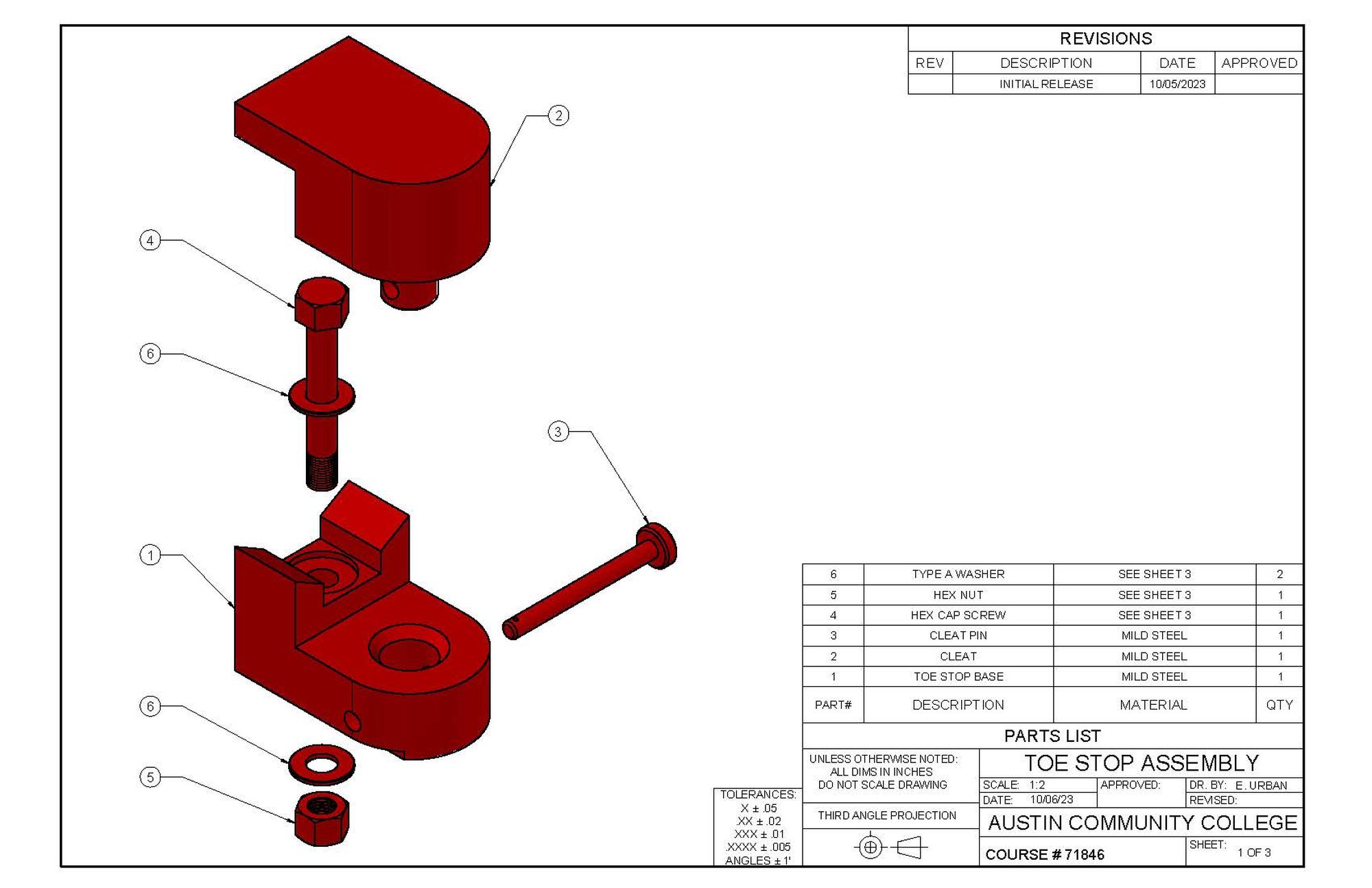

Toe Stop Assembly 3D Projection

The toe stop assembly was a project to practice our skills in drafting for manufacturing. The 3D projection needs to fit together and be lined up in 3-dimensional space.

Austin, Texas, October 2023.
